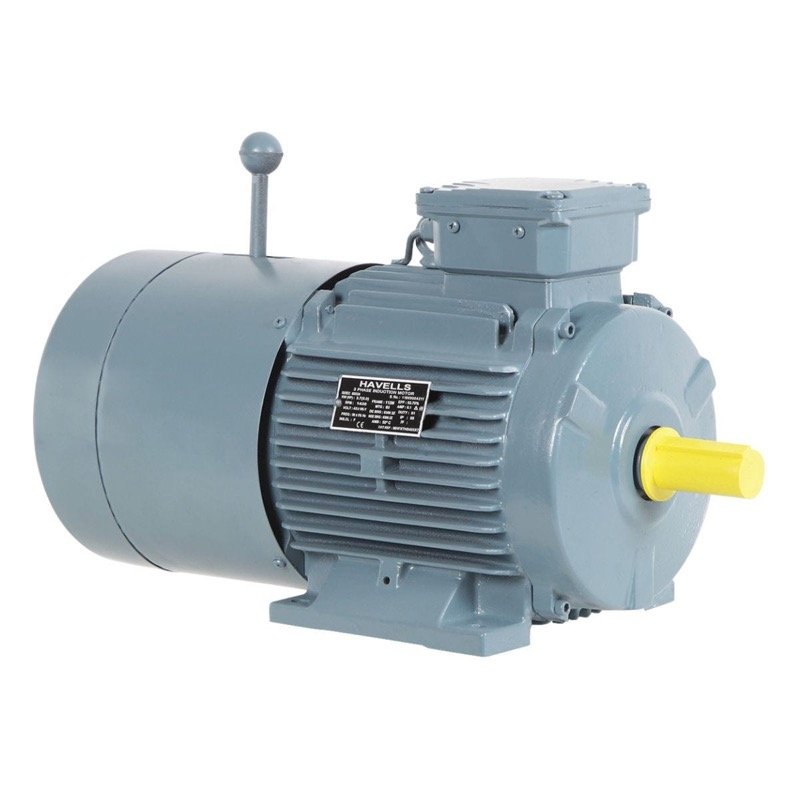

Havells 0.18 kW (0.25 HP) 6-Pole 1000 RPM IE2 Brake 3 Phase Induction Motor
Catalogue ref. MHBITCS60X18
₹20,060
Including 18% GST (₹17,000 + GST)
In stock · New
Add the motors you need to your cart and send one enquiry. We confirm stock, delivery charges and dispatch date, then send a GST invoice for payment. Return policy
Overview
Havells IE2 TEFC brake motor, 0.18 kW (0.25 HP), 6-pole 1000 RPM, frame MHBE71ZAA6. 190 V DC electromagnetic brake, 5 Nm, rectifier incl. 415 V 50 Hz, IP55, Class F, B3.
- 0.18 kW (0.25 HP); 6-pole; 1000 RPM; IE2 TEFC brake motor
- 190 V electromagnetic DC brake; 5 Nm braking torque; safety factor 2.5
- Supplied with brake; rectifier (415 V AC to 190 V DC) and manual release handle
- Aluminium body; frame MHBE71ZAA6; IP55; Class F insulation
- Horizontal foot mounted (B3); 415 V 50 Hz; 3 phase
Specifications
Electrical
- Rated Power
- 0.18 kW (0.25 HP)
- Efficiency Class
- IE2
- Duty
- S1 (Continuous)
- Rated Voltage
- 415 V ± 10%
- Frequency
- 50 Hz ± 5%
- Phase
- 3 Phase
- Number of Poles
- 6 (1000 RPM)
Brake
- Brake Type
- 190 V Electromagnetic DC Brake with Manual Release Handle
- Rectifier
- 415 V AC to 190 V DC
- Braking Torque
- 5 Nm
- Brake Safety Factor
- 2.5
- Price Includes
- Motor with Brake Arrangement plus Brake and Rectifier
Construction
- Frame
- MHBE71ZAA6
- Frame Material
- Aluminium
- Enclosure
- TEFC
- Mounting
- Horizontal Foot Mounted (B3)
- Degree of Protection
- IP 55
- Insulation Class
- Class F (temperature rise limited to Class B)
- Ambient Temperature
- 50 °C
Standards
- Efficiency and Performance
- IS 12615 (2018) / IEC 60034-1
Commercial
- HSN Code
- 8501
- Catalogue Reference
- MHBITCS60X18
