Havells · Crane duty

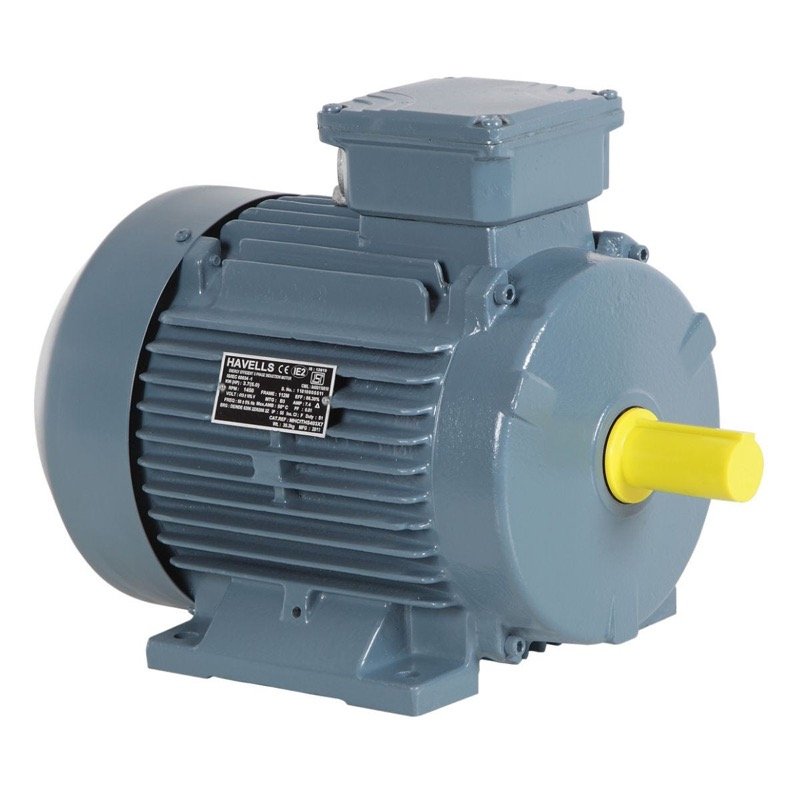

Havells S4 2.2 kW (3 HP) 8-Pole 750 RPM High Efficiency Crane Duty Motor (S4 40% CDF)
Catalogue ref. MHCKTHS802X2
₹24,780
Including 18% GST (₹21,000 + GST)
In stock · New
Add the motors you need to your cart and send one enquiry. We confirm stock, delivery charges and dispatch date, then send a GST invoice for payment. Return policy
Need this type of motor above 20 HP? Ask us for a quote
Overview
Havells high efficiency crane duty TEFC motor, S4 40% CDF 150 starts/h, 2.2 kW (3 HP), 8-pole 750 RPM, frame MHKE112MAG8. S1 output 1.5 kW (2 HP). 415 V 50 Hz, IP55, Class F, B3.
- S4 duty 2.2 kW (3 HP) (40% CDF; 150 starts/hour); 8-pole; 750 RPM
- S1 duty output 1.5 kW (2 HP) (IE2)
- Progressive frame for higher output and S4 duty (standard IEC frame on request)
- Cast Iron body; frame MHKE112MAG8; IP55; Class F insulation
- Horizontal foot mounted (B3); 415 V 50 Hz; 3 phase
Specifications
Electrical
- S4 Duty Rated Power at 40% CDF and 150 Starts per Hour
- 2.2 kW (3 HP)
- S1 Duty Output (IE2)
- 1.5 kW (2 HP)
- Duty
- S4 (Intermittent) at 40% CDF with 150 Starts per Hour and DOL Starting
- Rated Voltage
- 415 V ± 10%
- Frequency
- 50 Hz ± 5%
- Phase
- 3 Phase
- Number of Poles
- 8 (750 RPM)
Construction
- Frame Type
- Progressive Frame
- Frame
- MHKE112MAG8
- Frame Material
- Cast Iron
- Enclosure
- TEFC
- Mounting
- Horizontal Foot Mounted (B3)
- Degree of Protection
- IP 55
- Insulation Class
- Class F (temperature rise limited to Class B)
- Ambient Temperature
- 50 °C
Standards
- Efficiency and Performance
- IS 12615 (2018) / IEC 60034-1
Commercial
- HSN Code
- 8501
- Catalogue Reference
- MHCKTHS802X2
